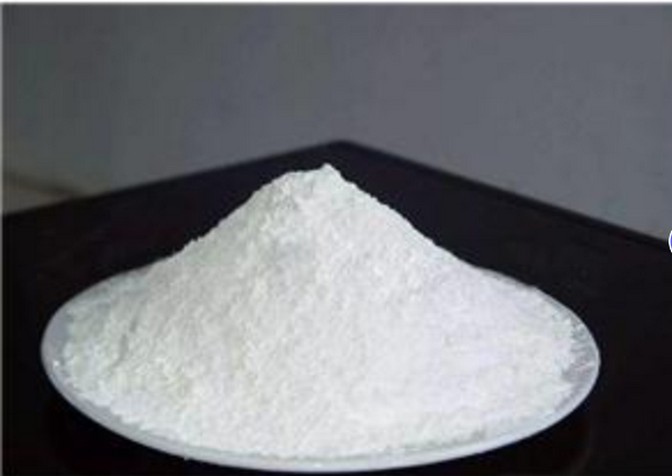

Yttrium fluoride (chemical formula YF₃, trifluoride yttrium), with its unique properties such as high temperature resistance, wide spectral transmittance, and strong corrosion resistance, has become a key basic material in infrared detection, high-power lasers, semiconductor chips, and aerospace fields. It seems to be just a packet of white powder, but it is an indispensable “invisible supporting role” in the high-end manufacturing industry chain.
Yttrium fluoride is an inorganic rare earth compound formed by the combination of yttrium and fluorine. Its conventional form is white crystalline powder in an orthorhombic crystal system, and it is one of the most balanced comprehensive performance rare earth fluorides.
I. Physical parameters: Melting point 1152℃, boiling point up to 2230℃. It is not prone to decomposition at high temperatures, has extremely low vapor pressure, and has full stability in extreme conditions; Density 4.01g/cm³. The particle size of the powder can be customized from 1 to 6 micrometers, and it can also be processed into coating targets; It is almost insoluble in water, dilute hydrochloric acid, and dilute nitric acid at room temperature, and can only be dissolved in perchloric acid. It has extremely strong chemical inertness.
II. Four core key performance advantages
1. Ultra-wide spectral transmittance, excellent base material for optical materials. Yttrium fluoride has a transmittance range covering 200nm deep ultraviolet to 12μm mid-to-long infrared, almost covering the entire practical optical band. The transmittance of a 1mm thick crystal is over 90%; The refractive index of visible light is only about 1.5, and the refractive index in the infrared band is even lower, with very small dispersion, making it an ideal low refractive index material for multi-layer optical films. Compared with traditional coating materials such as fluorine-magnesium and fluorine-calcium, it has higher mechanical hardness after coating, weaker hygroscopicity, and is less likely to be affected by moisture and delaminate over a long period of use, especially suitable for humid and temperature difference-intensive outdoor and military environments.
2. Super strong thermal stability and corrosion resistance. The yttrium-fluorine ion bond forms a dense crystal lattice. At 1000℃ high-temperature environment, the structure does not collapse or oxidize, and it can withstand plasma fluorine gas corrosion, acid and alkali erosion, and strong radiation impact. It can be used as a high-temperature sintering additive or a coating for equipment anti-corrosion protection.
3. Excellent film formation performance, suitable for precise coating processes. During vacuum evaporation and magnetron sputtering to prepare films, the internal stress of the film layer is extremely low, allowing for direct coating of films over 2 micrometers thick without cracking. The laser damage threshold is high, and the coating of high-power laser devices will not be penetrated by high-energy laser. It is an ideal raw material for high-end optical coating.
4. Controllable purity, meeting the impurity requirements of high-precision industries. Industrial production can stably produce 3N (99.9%), 4N (99.99%), and 5N (99.999%) ultra-pure grades. The content of heavy metals and other rare earth impurities is extremely low, meeting the strict entry standards for semiconductor, laser crystals, and biomedical imaging.
III. Comprehensive application fields of yttrium fluoride (from civilian technology to national defense and military industry)
(1) The largest application: Optical coating and laser industry (core track)
1. Infrared thermal imaging, night vision equipment window coating, infrared thermometers, vehicle night vision cameras, security thermal imagers, unmanned aerial vehicle photoelectric pods, germanium lenses, sapphire windows, the surfaces of all these will be coated with yttrium fluoride anti-reflection protective films. In the 8–12μm atmospheric infrared window, the transmittance is significantly improved, while protecting brittle optical lenses from scratching, moisture, and cracking due to temperature differences, and it is also a key material for the outer layer protective film of missile guidance infrared fairings.
2. High-power laser devices, laser crystal matrix – first, as a YAG laser crystal and fluoride optical fiber (ZBLAN optical fiber) doping material, preparing mid-infrared transmission optical fibers for industrial laser cutting and medical laser surgery; second, synthesizing upconversion luminescent materials NaYF₄, doping erbium and ytterbium rare earth ions to achieve near-infrared to visible light luminescence, widely used in biological cell fluorescence imaging, optical temperature sensors, high-end anti-counterfeiting labels, and Mini LED backlight fluorescent powder matrix. 3. High-end lenses and precise optical components for space telescopes, remote sensing satellite optical lenses, LiDAR (Light Detection and Ranging) multi-layer diffraction films, high-reflection films, polarization films, are extensively used. They are composed of yttrium fluoride combined with high refractive index materials to enhance imaging clarity and environmental adaptability.
(II) Semiconductor chip manufacturing: Anti-corrosion coating for etching equipment. This is an emerging application with rapid growth in recent years: The dry etching process in chip manufacturing generates strong corrosive gases such as CF₄, SF₆, and fluorine, which rapidly erode internal components of the chamber. Spraying yttrium fluoride coating on electrostatic clamps, focusing rings, chamber liners, and spray heads can resist fluorine-based plasma erosion, reduce particle pollutant drops, improve wafer yield, significantly extend the service life of expensive semiconductor equipment components, and is a standard protective material for advanced process etching equipment.
(III) Aerospace and high-temperature special protection: Utilizing the ultra-high melting point and low thermal conductivity properties, yttrium fluoride is often compounded with zirconium to prepare thermal barrier coatings. These coatings are sprayed on the surfaces of aircraft engine turbine blades, combustion chamber walls, rocket engine nozzles, and high-speed flight heat-end components to prevent high-temperature gas burning, while resisting high-speed gas flow erosion and oxidation corrosion, ensuring the stable operation of aircraft in extreme conditions.
(IV) New materials, metallurgy, and other niche essential scenarios
1. Adding high-temperature structural ceramic toughening agents to silicon nitride and aluminum oxide specialty ceramics to optimize sintering performance, enhance ceramic high-temperature strength, thermal shock resistance, and corrosion resistance, used for military wear-resistant parts and insulation ceramic components for new energy equipment;
2. In the metallurgical industry, deoxidizers and alloy modifiers in the smelting of specialty alloys and magnesium-aluminum alloys are used as rare earth additives to refine grains, enhance alloy strength and oxidation resistance;
3. Nuclear industry protective materials, due to their radiation resistance, are used as neutron reflection materials and component anti-corrosion protection layers in nuclear reactors to improve the safety of nuclear devices;
4. A small amount of lithium battery auxiliary additives are added to the negative electrode materials to improve electrode cycling stability and slightly increase the charging and discharging life of lithium battery.
Yttrium fluoride, as a niche high-value fluoride in the rare earth processing field, although not as popular as rare earth permanent magnetic materials, is indispensable in four high-precision and advanced fields: infrared optoelectronics, laser technology, semiconductor equipment, and aerospace. As a specialized and innovative high-tech enterprise in Sichuan, Sichuan Wonaixi Rare Earth New Materials has long been deeply engaged in the processing of rare earth fluorides and can stably supply high-purity yttrium fluoride products of different purity and particle size specifications. From the optical coating of night-time security thermal imaging cameras to the anti-corrosion coating of semiconductor etching equipment and aerospace high-temperature thermal barrier protection components, Wonaixi‘s produced white rare earth powder has continuously provided core materials support for the domestic high-end equipment industry chain, and is a benchmark product for the refined and high-value processing of rare earth resources.
Post time: Jul-29-2026
